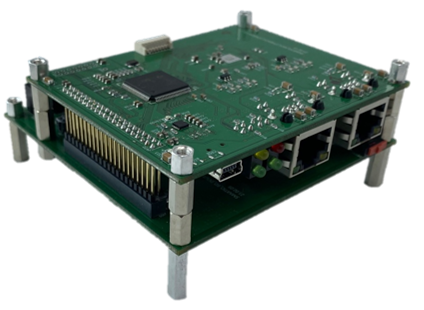

iDAQ | RB-DO-v1
Intelligent Data Acquisition System | RB-DO-v1
디지털 출력 터미널 사양
Digital Output Channel: 8ch
– Output Voltage Range: Max. +40Vdc (External supply)
– Output Channels: 8 ch
– Output Current: 0.5A (per channel)
– Type : Low side switching
– Output Pin Protection: Built-in active clamp circuit, Overcurrent/Overtemperature
– Input Status LED
Communication
– EtherCAT
– CAN : Module ID address selection, Bus termination, S/W baudrate selection
– RS-422/485/232 : S/W baudrate selection
– Bus pin protection: IEC 61000-4-2(ESD) ±12 kV
Device Profile
– CANopen CiA301 Communication profile
– CANopen CiA401 Device profile for I/O modules
– EtherCAT CoE (CANopen over EtherCAT), DC support
Supply Voltage
– Input Rage: +10Vdc ~ +24Vdc (Max. 40V)
– Protection: IEC 61000-4-2(ESD)/4(EFT)/5(Surge)
